Teltonika RUT200 4G Router

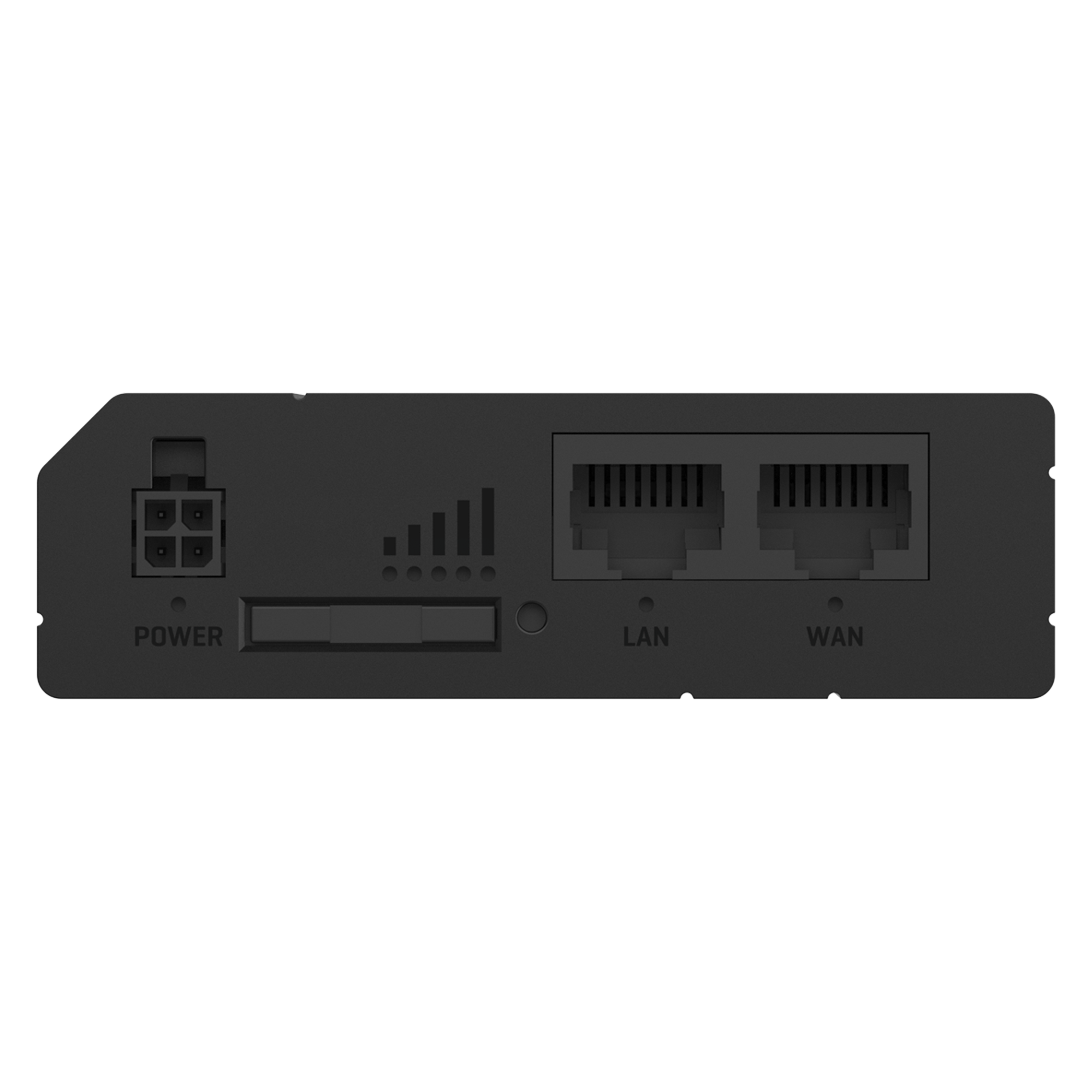

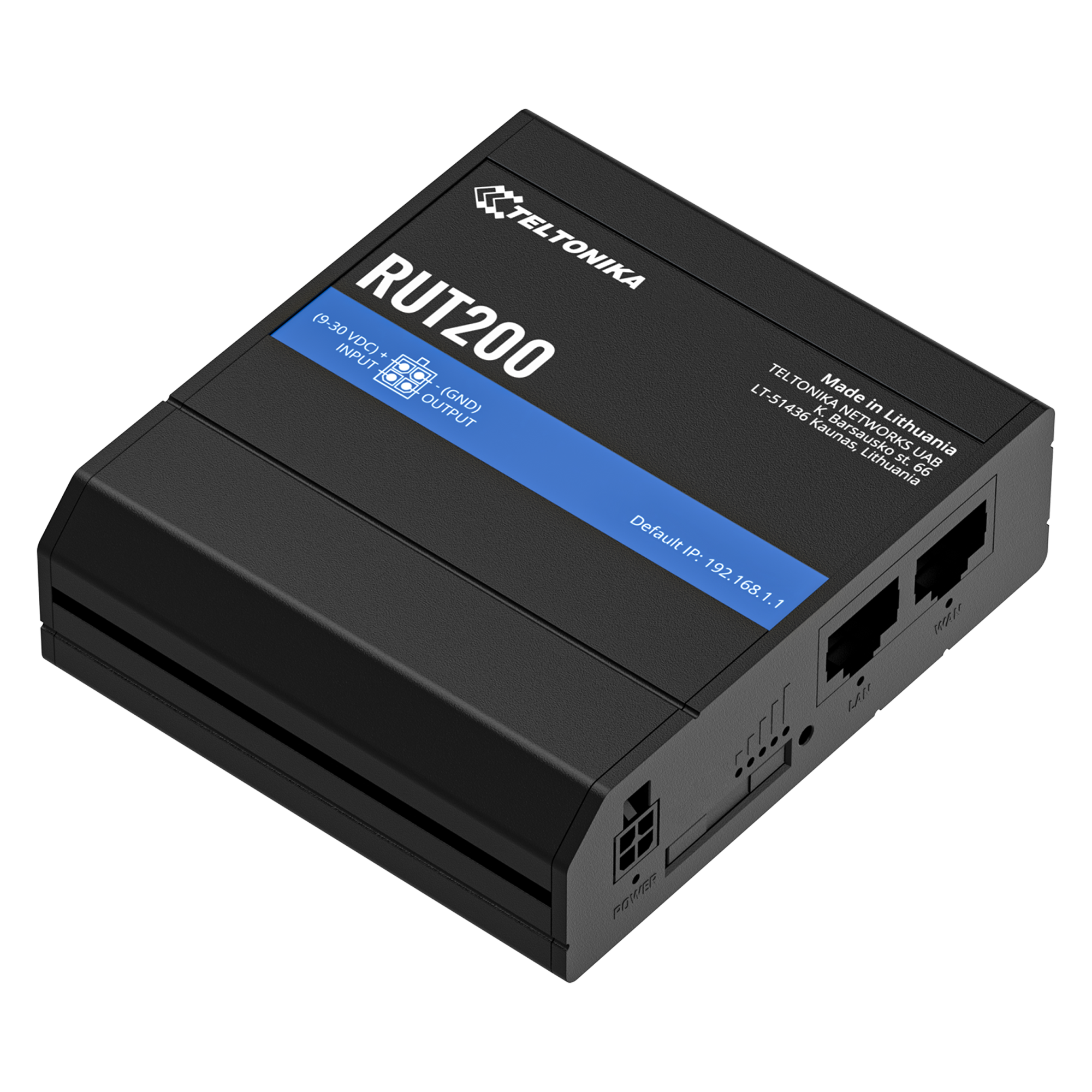

Teltonika RUT200 4G Router - Image 2

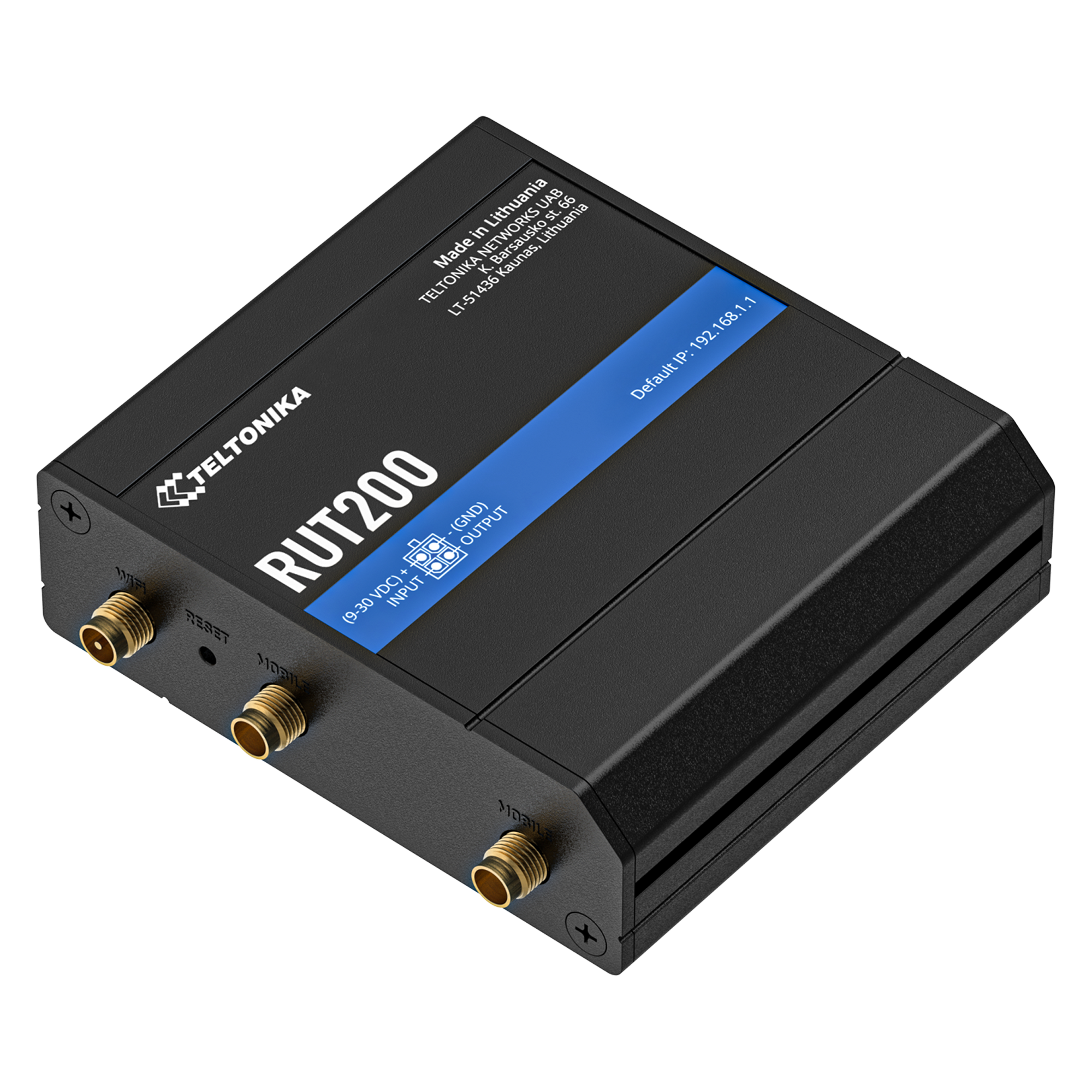

Teltonika RUT200 4G Router - Image 3

Teltonika RUT200 4G Router

  • Industrial 4G LTE Cat 4 router delivering up to 150 Mbps download speeds
  • Dual Ethernet ports for WAN/LAN flexibility in hybrid and remote power systems
  • Wi-Fi 4 (802.11 b/g/n) access point with up to 150 Mbps wireless throughput
  • Robust Qualcomm CPU (650 MHz) engineered for demanding field deployments
  • Rugged aluminium housing designed for harsh outdoor and construction environments
  • Wide operating temperature range from –40°C to +75°C for all-weather reliability
  • External SMA antennas (LTE and Wi-Fi) for improved signal strength and positioning
  • Digital I/O ports for integration with BMS, inverters, alarms or sensors
  • Multiple VPN options: OpenVPN, IPSec, PPTP, L2TP, WireGuard for secure connectivity
  • Automatic failover to mobile network for continuous online operation
  • Advanced firewall with MAC/IP filtering, port forwarding and secure routing
  • SMS remote control for quick resets and configuration changes
  • Full RMS compatibility (Teltonika Remote Management System) for remote updates, diagnostics and monitoring
  • Low power consumption (< 6 W) ideal for BESS and off-grid solar systems
  • Compact footprint (83 × 74 × 25 mm) fits into trailers, cabinets and mobile power banks
  • CE, UKCA, RoHS certified for compliance with UK and EU industrial standards
Ready to HireEnquire NowTechnical

Description

Connectivity

  • 4G LTE Cat 4 – up to 150 Mbps download / 50 Mbps upload
  • 3G / 2G fallback for uninterrupted connectivity
  • Wi-Fi 4 (802.11 b/g/n) – 2.4 GHz, up to 150 Mbps
  • 2 × Ethernet ports (1× WAN/LAN, 1× LAN)

Hardware

  • CPU: Qualcomm QCA9531, 650 MHz
  • RAM: 64 MB
  • Flash Memory: 16 MB
  • SIM Slots: 1× Mini SIM (2FF)
  • External Antennas:
    • 2× LTE SMA
    • 1× Wi-Fi SMA
  • I/O: 1× Digital Input / 1× Digital Output
  • Housing: Rugged aluminium enclosure

Power

  • Input Voltage: 9–30 V DC
  • Power Consumption: < 6 W typical
  • Power Connector: 4-pin industrial connector

Environmental

  • Operating Temperature: –40 °C to +75 °C
  • Storage Temperature: –40 °C to +85 °C
  • Humidity: 10% to 90% non-condensing
  • Ingress Protection: IP30
  • Shock & Vibration: Compliant with IEC 60068 standards

Networking & Protocols

  • VPN Support: OpenVPN, IPSec, PPTP, L2TP, WireGuard
  • Failover & Backup: Automatic WAN failover, mobile backup
  • Routing Modes: NAT, Bridge, Router
  • Firewall: Stateful firewall, MAC filter, IP filter
  • Management: WebUI, CLI, SSH, SMS control

Remote Management

  • Fully compatible with Teltonika Remote Management System (RMS):
    • Remote firmware updates
    • Device diagnostics
    • Live status monitoring
    • Secure access to connected equipment

Dimensions & Weight

  • Size: 83 × 74 × 25 mm
  • Weight: 125 g

Certifications

  • CE, UKCA
  • RoHS
  • RCM
  • EAC
  • FCC

What’s Included

  • RUT200 Router
  • 2× LTE Antennas
  • 1× Wi-Fi Antenna
  • 4-pin power connector
  • Quick start guide
